Irsa Multi-Metal Clad Plates

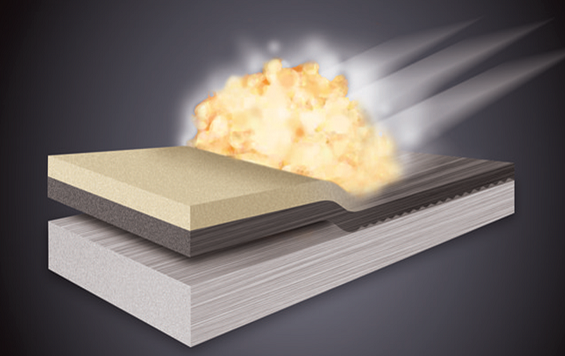

At Irsa Cold, multi-metal clad plates are manufactured using the explosive welding method, leveraging advanced technical expertise and specialized equipment. These plates, precisely engineered by combining base and clad metals, are designed to meet the specific demands of various industries, including steel, oil, gas, petrochemical, and power generation sectors. The production process is accompanied by strict quality control at every stage to ensure the final product meets the highest standards in terms of bonding strength, uniformity, and mechanical properties. With a wide range of alloy combinations, customizable dimensions and structures, and stable performance under harsh industrial conditions, Irsa Cold’s clad plates have become a reliable choice for cutting-edge industrial projects.

Irsa Multi-Metal Clad Plates

GradeClad SteelGradeBase Metal
410 S. 405, 304, 304 L, 321Stanless SteelGr 60, 65, 70ASME SA516
316 L, 316 Ti, 317L, 347 HStanless SteelASME SA105
S31803(2205), N08904(904 L)Stanless SteelLF1, LF2, LF3ASME SA350
N02200(200), N02201(201), N04400(400)Nickel AlloyGr 11,12, 21, 22ASME SA387
N06600(600)/6625Nickel AlloyF 1, 11, 12, 21, 22ASME SA182
N08800(800)/8825, N08028 (Alloy28)Nickel AlloyF21 , Gr1-3, F12, F11, Gr.1ASME SA336
N10276 (C-276), N06022(C-22)Nickel AlloyTP 304 LASME SA240
N106455 (C-4), N06059 (59#)Nickel AlloyF 304 LASME SA182
Gr1, Gr. 11, Gr. 17Titanium Alloyall classesASME SA266
C70600, C71500Copper NickelCL2ASME SA765
C10200, C10400, C10500, C1100CopperASME SA204
C 6300, C 61400AluminiumASME SA302
تن 50000
ظرفیت سالیانه
mm 4200حداکثر طول
13000 mmحداکثر عرض
50 m2حداکثر محدوده کلی
11حداکثر تعداد لایه ها
0.2-500 mmضخامت ورق بیس
0.1-100 mmضخامت ورق کلد
